Description

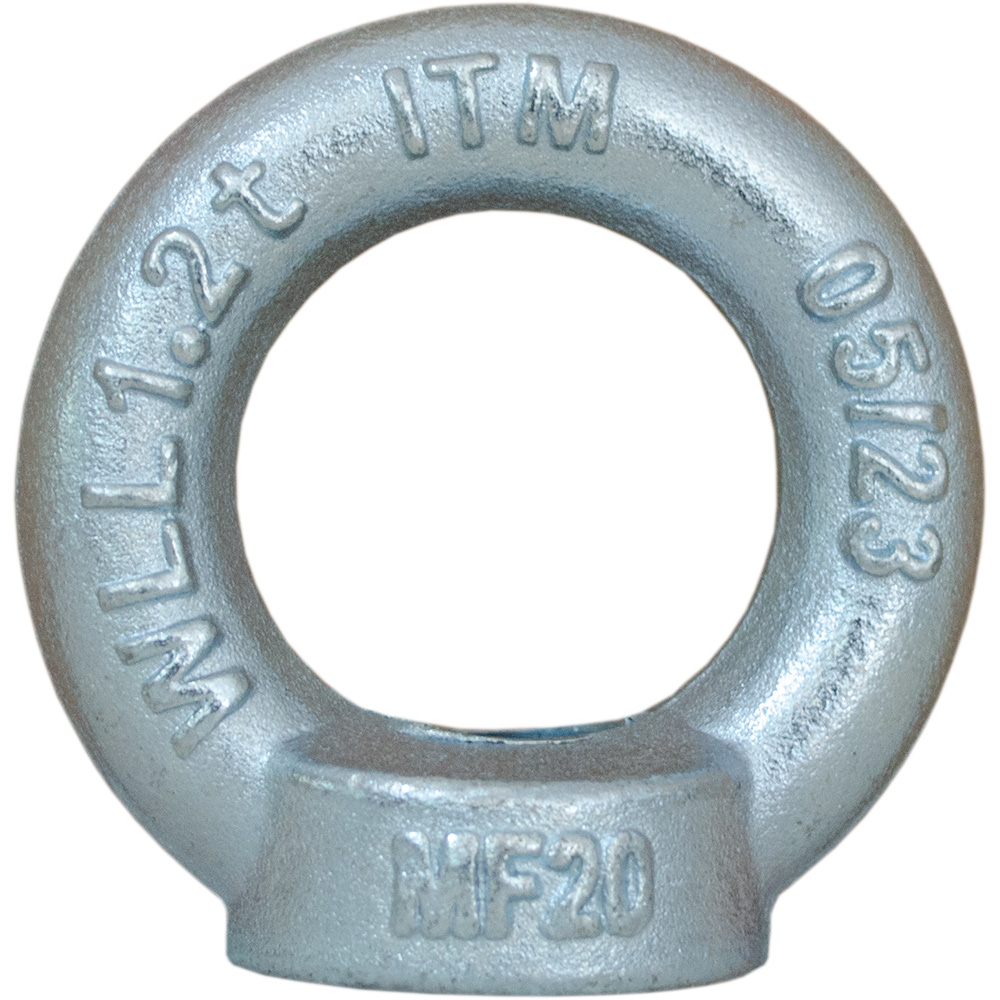

When you need a threaded lifting point, use hardware that’s rated for the job. ITM Shouldered Eyenuts are load-rated lifting eyenuts with a working load limit (W.L.L.) marked for every thread size from M8 to M24, electro-galvanised for corrosion resistance. The shouldered design seats squarely against the mounting face, giving proper support where side loading can occur — the correct choice over plain eyenuts or improvised hardware for lifting applications.
Features and Benefits
- Rated for Lifting: Each size carries a specified working load limit, from 0.14T (M8) up to 1.8T (M24) — select your thread size above to see the W.L.L.
- Shouldered Design: The shoulder seats against the mounting surface for correct load transfer and improved resistance to angular loading compared with plain-pattern eyenuts.
- Seven Thread Sizes: M8, M10, M12, M16, M20, M22 and M24 cover the common machinery and fabrication lifting-point requirements.
- Electro-Galvanised Zinc Finish: Corrosion protection for workshop and site conditions.
A reminder from the team: always match the eyenut W.L.L. to the load, inspect before every lift, and remember that angular loading reduces capacity — if you’re unsure about a lifting setup, give Wallace Heron a call before you rig it.
